HC425

Data:



HC425 versions: 11 different intensification factors

PIN: 20 – 207 bar

PH: 800 bar maximum

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: Inline tube

Weight: 5.5 kg.

Model versions:

A model = no dump valve
B model = with dump valve

Material certificate 3.1 on request

Description

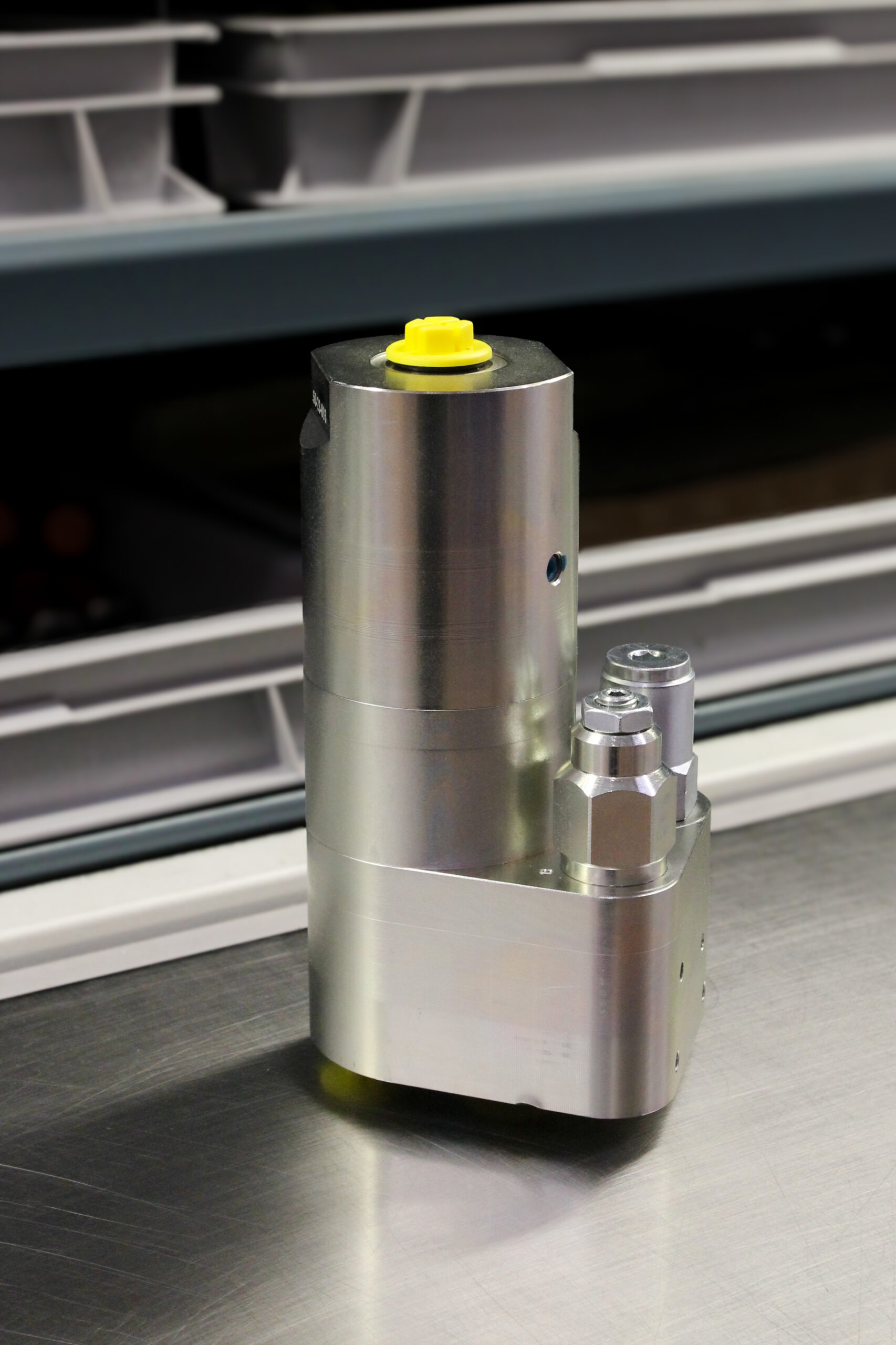

​The HC425 is a compact unit weighing only 5.5 kg. It is ideal for use in a variety of applications where building and maintaining high pressure is required.

The HC425 incorporates both a counterbalance valve and a pressure reducing valve (PRV).

The integrated counterbalance valve allows fast-forward movement of a cylinder by directing the full inlet flow to pass directly through the booster section until the set pressure has been reached. Then the counterbalance valve opens, and the booster starts oscillating.

The integrated pressure reducing valve controls inlet pressure to the booster section. It protects both booster and high-pressure tool against too high pressure. It secures a stable high pressure regardless of changes in the tank line pressure.

An optional orifice can be mounted in the R-port of the booster to prevent overspeeding.

The HC425 raises supplied pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

Flow rates

Intensification factor
i
Max. intensified outlet flow
l/min
Max. inlet flow
l/min
1.316.340.0
1.514.140.0
1.811.840.0
2.110.140.0
2.68.140.0
2.87.640.0
3.26.540.0
4.35.040.0
5.14.140.0
6.33.440.0
9.82.240.0

Functions

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the PRV (pos. 5) and the internal check valves to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function.

When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

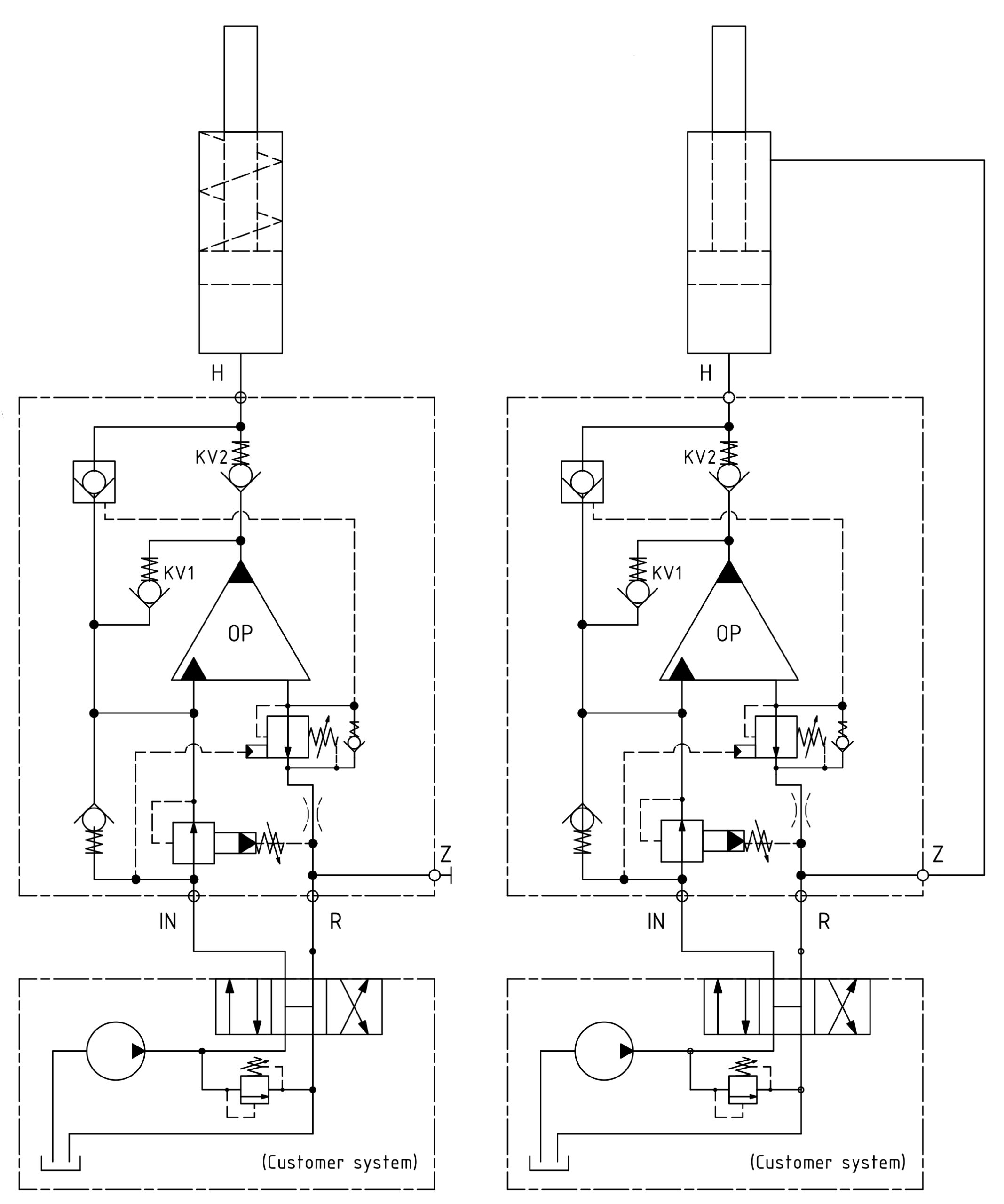

Function diagram

0-418-00

Dimensions

Dimension drawing 4-143-00

Connection types

ConnectionIN / RH
11/2" BSPP1/2" BSPP

Fluids and materials

Additional information is available on the website under Products → General specifications.

Ordering an HC425

Ordering example of an HC425 with i = 4.3, DV incorporated and BSPP connections: HC425 – 4.3 – B – 1

Attention note!
Valve pre-settings are required, please specify when ordering the intensifier.

R

Model

  • HC425
R

Intensification, i

  • Select factor
  • See flow rate table
R

Model version

  • Select type
  • A = without DV
  • B = with DV
R

Connections

  • Select thread
  • 1 = BSPP

Max. tightening torque BSPP

IN / RH
1/2" BSPP1/2" BSPP
with steel washer13.0 da/Nm13.0 da/Nm
with cutting edge13.0 da/Nm13.0 da/Nm
