HC63

Data:



HC63 versions: 9 different intensification factors

PIN: 20 – 207 bar

PH: 800 bar maximum

PRETURN: As low as possible (return pressure to tank)

POUTLET: PH = (PIN – PReturn) i (intensification)

Mounting: Inline tube / HP-flange mounting (optional)

Weight: 60.0 kg.

Model versions:

A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled

Material certificate 3.1 on request

Description

The HC63 is a high-flow unit which is capable of delivering up to 64.5 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC63 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC63 is a compact unit weighing only 60.0 kg.

HP flange mounting is optional. Furthermore, it is possible to flange multiple HC63 boosters in order to achieve higher flow

Flow rates

Intensification factor
i
Max. intensified outlet flow
l/min
Max. by-pass pump flow
l/min
1.264.5225.0
1.555.5225.0
2.048.0225.0
2.539.0225.0
3.333.0225.0
4.027.0225.0
4.921.0225.0
6.316.5225.0
8.213.5225.0

Functions

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves KV1, KV2 and DV to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function.

When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function diagram A-model

63-105-A-00

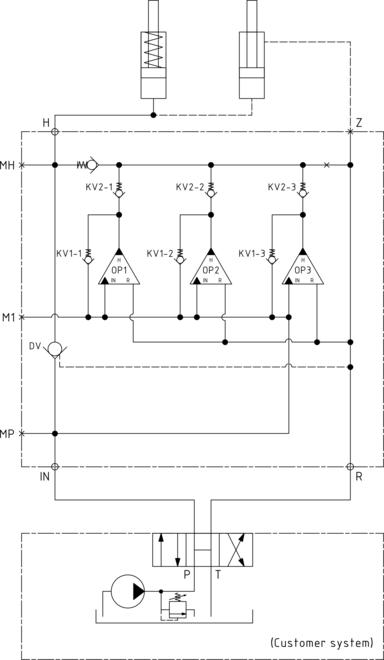

Function diagram B-model

63-105-B-00

Dimensions

Dimension drawing 63-120-02

Connection types

ConnectionP / TH / Z
11" BSPP1" BSPP

Fluids and materials

Additional information is available on the site General specifications



Ordering an HC63

Ordering example of an HC63 with i = 4.0, DV incorporated and BSPP connections: HC63 – 4.0 – B – 1

Attention note!
The G-model is available in 2 variants, when ordering please specify accordingly:

  • Dynamic – low hysteresis: Ordering example of an HC63 with i = 4.0 RV incorporated and BSPP connections: HC63 – 4.0 – G – 1
  • Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support. Ordering example of an HC63 with i = 4.0 RV with opening ratio x.x incorporated and BSPP connections: HC63 – 4.0 – G – x.x – 1
R

Model

  • HC63
R

Intensification, i

  • Select factor
  • See flow rate table
R

Model version

  • Select type
  • A = without DV
  • B = with DV
  • G = with proportional valve
R

Connections

  • Your selection
  • 1

Max. tightening torque BSPP

P / TH / Z
1" BSPP1" BSPP
with steel washer33.0 da/Nm33.0 da/Nm
with aluminium washer18.0 da/Nm
with cutting edge33.0 da/Nm33.0 da/Nm

Max. tightening torque flange mounting

Mounting bolt
M10 8.8  5.0 da/Nm
