M-HC-029

Key features:

Automatically activated (sequence valve)

High pressure in both directions

High pressure – up to 500 bar (7,250 psi)

Max. inlet pressure = 350 bar (5,000 psi)

Fast fill – system flows up to 40 l/min

Adjustable outlet pressure

Extended service life

Robust design

Flexible design; several intensification factors

Switch from by-pass to intensified flow

Description

The M-HC-029 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. It operates only when needed, to save energy.

Furthermore, the M-HC-029 Intensifier System is designed with a pilot-operated directional valve on the high-pressure side, making it possible to alternately boost the high pressure to respectively the A or B side of, for example, a cylinder. The system has three extended features compared to standalone boosters: sequence adjustment, pressure adjustment and safety relief adjustment.

The system is dynamical by means of being able to provide flow at high pressure for intermittent use (< 10 min duty cycle).

Typical applications

Mobile attachments; motors – steering systems – cutters – crushers – shears, off highway equipment, injection molding machines and hydraulic presses. Applicable to machines with insufficient pump capacity to prevent machine stoppage when peak pressures occur.

Easy installation

M-HC-029 is provided with four mounting holes for throughbolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.

Functions

The function of the system is simple, but smart. The hydraulic oil is bypassed directly from the pump to the workload at maximum flow when back pressure from the workload has reached a setpoint close to the maximum pressure of the pump.

A sequence valve opens and directs the oil to the booster, which makes the pressure rise. The shift between maximum pump pressure and high pressure happens without intervention from the user and ensures that the workload will be driven at a maximum speed at all times in relation to the required high pressure.

A relief valve is installed to control the maximum allowable pressure that the system can output, allowing the booster to go for a higher end pressure producing flow at the decided pressure.

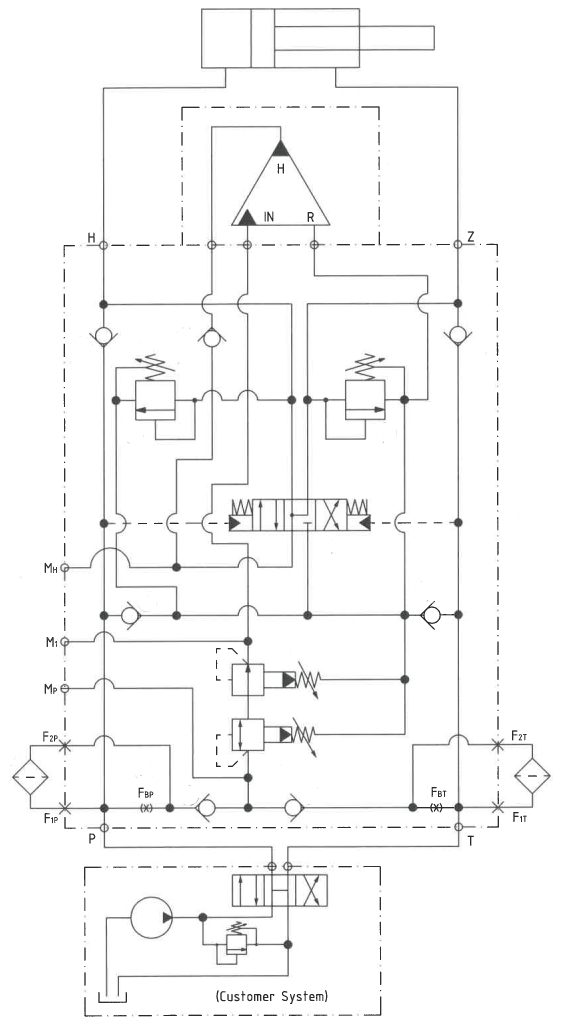

Function diagram

029-02

Connection types

ConnectionP / T / Z / HM (P / H / 1), F1_ / F2_
M-HC2D-029-1K403/8" BSPP1/4" BSPP

Fluids and materials

Additional information is available on the website under Products → General specifications.

Ordering an M-HC-029

Ordering example of an M-HC-029 for 500 bar, connection tube BSPP with HC2D i = 3.2, static use:

M-HC2D-029-1K40 mounted with HC2D-3.2-A-D

Guidance to calculate the intensification factor for dynamic or static use is at the bottom of this section.

Attention note!
Valve pre-settings are required, please specify when ordering the intensifier system.

Selection of intensifier system

Ordering codeConnectionBypass flowMax. pressureWeightDimension drawing PDF
M-HC2D-029-1K40Tube40 l/min  500 bar23.0 kgM-HC2D-029-1K40

Selection of intensification factor

HC2D-_._-A-DHC3-_._-A-D
1.61.5
1.92.0
2.22.8
2.63.2
3.24.0
4.05.0
5.06.6
6.69.0
9.0

The intensification factor depends on available inlet and desired outlet pressure. To calculate the initial factor, use the following formular:

i = Desired high pressure / pump pressure

Desired pressure: 500 bar
Pump pressure: 207 bar
i = 500 / 207 = 2.4

For static use: Select an intensification factor higher or equal to the calculated value. In this example calculated i = 2.4, select factor i = 2.6. The desired pressure of 500 bar is finally adjusted with the Pressure Reducing Valve (5).

For dynamic use: Select an intensification factor 40% higher than the calculated value. In this example calculated i = 500 / 207 = 2.4 + 40% = 3.4, select factor i = 4.0. The desired pressure of 500 bar is finally adjusted with the Relief Valves (6).

Max. tightening torque BSPP

P / T / Z / HM (P / H / 1), F1_ / F2_
3/8" BSPP1/4" BSPP
with steel washer6.0 da/Nm4.0 da/Nm
with cutting edge6.0 da/Nm4.0 da/Nm

Max. tightening torque flange mounting

Mounting bolt
M10  7.0 da/Nm
