M-HC6

Data:



Automatically activated (sequence valve)

Flexible design; several intensification factors

Multiple connection possibilities

Extended service life

Robust design



PIN: 20 – 300 bar

PH: 500 bar maximum

Q: 100 L/min

Weight: 23.0 kg.

Description:

The M-HC6 is a complete, ready-to-install, high-flow and high-pressure intensifier system. The system is based on the miniBOOSTER HC6 intensifier and includes integral high-flow bypass and isolation valves.

The intensifier system M-HC6-004 also includes a relief valve on the HP-side.

The system is ideal for mobile attachments to take full advantage of the pump capacity for fast-forward movement of the hydraulic cylinder(s) and to boost pressure, when needed to achieve intensified (crushing/clamping) pressures.

The M-HC6 intensifier system can be tailor-made to match your application.

Typical applications

Mobile attachments; motors – steering systems – cutters – crushers – shears, off highway equipment, injection molding machines and hydraulic presses.

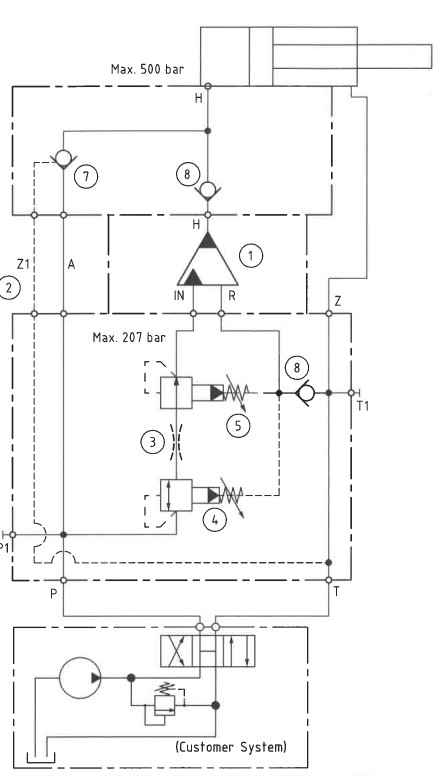

Function diagram for models M-HC6-001, -002, -003

0-262-06

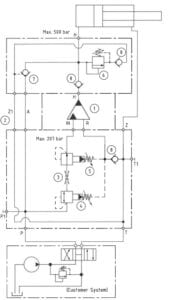

Function diagram for model M-HC6-004

0-289-03

Connection types

ConnectionP / T / ZHP1 / T1
M-HC6-0011/2" BSPPFlange3/8" BSPP
M-HC6-0021/2" BSPPFlange1/2" BSPP
M-HC6-0031/2" BSPP1/2" BSPP3/8" BSPP
M-HC6-0041/2" BSPP1/2" BSPP3/8" BSPP

Fluids and materials

Additional information is available on the site General specifications



Ordering example of an M-HC6

An intensifier system M-HC6 for 500 bar 100 l/min with 1/2” BSPP thread connection on high-pressure side for tube mounting, mounted with an HC6-2.5-A-1:

M-HC6-003 mounted with HC6-2.5-A-1

Attention note!
Valve pre-settings are required, please specify when ordering the intensifier system.

Selection of intensifier system

Ordering codeConnectionBypass flowMax. pressureWeightDimension drawing PDF
M-HC6-001Flange100 l/min500 bar23.0 kg6-122-05
M-HC6-002Flange100 l/min500 bar23.0 kg6-123-01
M-HC6-003Tube100 l/min500 bar23.0 kg6-124-01
M-HC6-004Tube100 l/min500 bar23.0 kg6-125-02

Selection of intensification factor

ModelIntensification, iModel versionConnection
HC61.3A1
HC61.5A1
HC61.9A1
HC62.5A1
HC63.3A1
HC64.0A1
HC64.9A1
HC66.3A1
HC68.2A1

The intensification factor depends on available inlet and desired outlet pressure. To calculate the initial factor, use the following formular:

i = Desired high pressure / pump pressure

Desired pressure: 500 bar
Pump pressure: 207 bar
i = 500 / 207 = 2.4

For static use: Select an intensification factor higher or equal to the calculated value. In this example calculated i = 2.4, select factor i = 2.5. For M-HC6-004 only: The desired pressure of 500 bar is finally adjusted with the Pressure Reducing Valve (5).

For dynamic use: Select an intensification factor 40% higher than the calculated value. In this example calculated i = 500 / 207 = 2.4 + 40% = 3.4, select factor i = 4.0. The desired pressure of 500 bar is finally adjusted with the Relief Valve (6).

Max. tightening torque

P / T / ZH
1/2" BSPP1/2" BSPP
with steel washer13.0 da/Nm13.0 da/Nm
with cutting edge13.0 da/Nm13.0 da/Nm

Max. tightening torque flange mounting

Mounting bolt
M6 12.91.8 da/Nm
