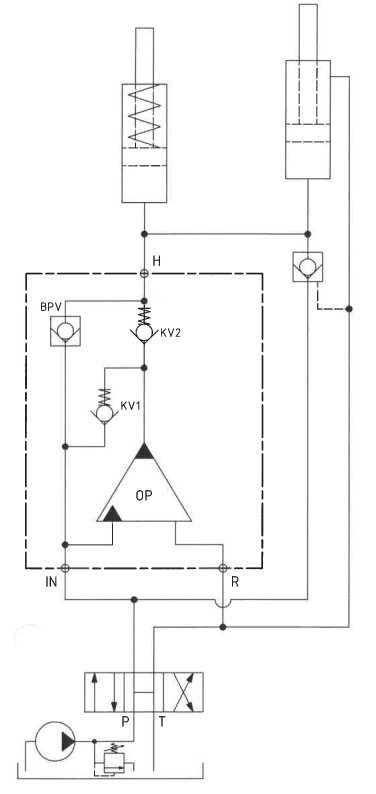

A model – Without Dump Valve

High pressure is relieved externally. This is achieved in most cases by the use of a pilot operated check valve. This is a good solution when there is high return flow from a large bore hydraulic cylinder

0-143A-01
